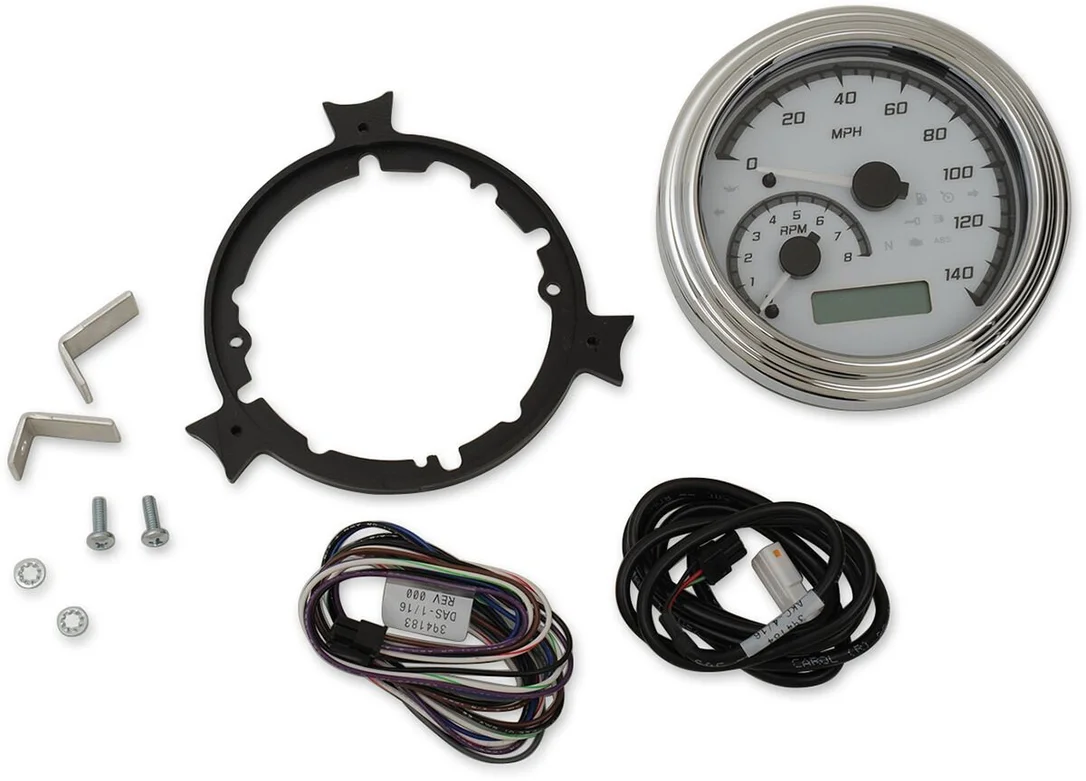

Has 140 mph speedometer, tachometer, odometer, dual resettable trip meters, and full indicator light complement (turn signal, high beam, neutral, low oil pressure) in one stylish gauge
Systems for ’99-’03 models feature seven user-selectable colors for pointer, backlight and LCD message center (red, green, blue, teal, magenta, amber or white)
Systems for ’11-’22 models feature 31 user-selectable colors or pointer, backlight and LCD message center
8,000 rpm tachometer has adjustable shift point and can display in digital numeric readout
Resettable miles to service with a warning (user settable countdown) and hour meter
Clock function (12-hour format)
Voltage readout with low-voltage alert
Cylinder head temperature sensor (if bike is equipped with factory sender unit)
Oil pressure sending unit (sold separately, part #s 2212-0513 or DS-250019
Seven-speed gear position indicator, compatible with 3- to 7-speed transmissions
Security system indicator
Automatic turn signal cancelling compatible
Wait to start/check engine light function
Can perform performance calculations such as 0-60 time, top speed and peak rpm recall, 1/4 mile time and speed
Wiring installation is cut/splice; not a direct plug-in gauge
Case diameter measures 4-1/4″ and bezel diameter of 4-5/8″
