Name: USB PIGTAIL COMMUNICATION HARN
SKU: 10201855
Availability: InStock

USB PIGTAIL COMMUNICATION HARN

Description

Beskrivning av USB PIGTAIL COMMUNICATION HARN

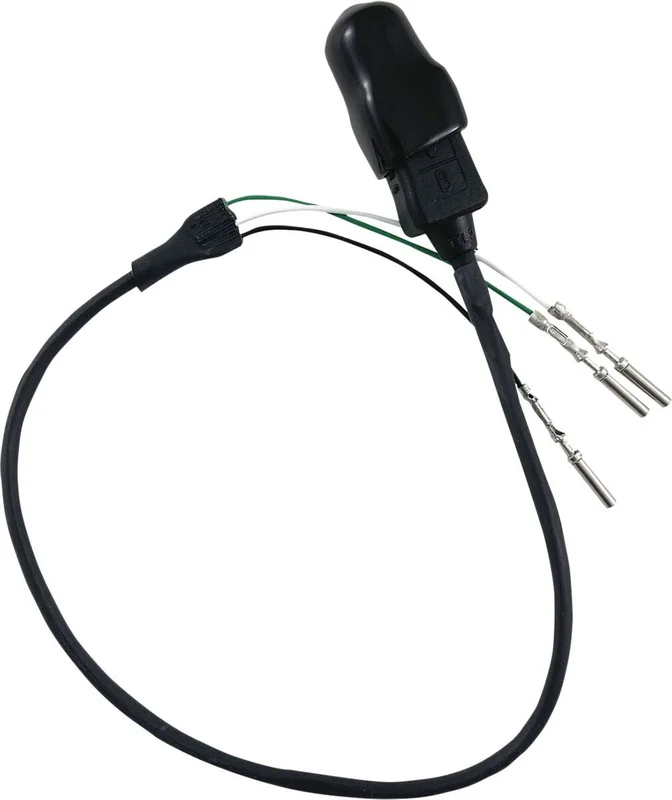

Pigtail Harness

Handy for motorcycle models with tight clearances around the ECM such as Dyna, Softail Rocker and ’02-’05 V-Rod models

Allows a second port for the communication cable connection to the ThunderMax

Made in the USA

Requires ThunderMax ECM with mini USB communication port (beginning November 2012). Will not work on previous model ThunderMax ECM or part # 1020-0836 (Touring TBW units).Installed into the bike’s wiring harness at the 36-pin ECM connector (connection requires harness plug disassembly; two terminated wires are inserted into two unused ports in the 36-pin connector, and a ground wire added).
